CCNA / Network+ Tutorial: Bridges, Switches, And Broadcast Domains

In the previous section of this free CCNA and Network+ tutorial series on switching fundamentals, we had a look at how CSMA/CD operates and began our discussion of collision domains.     Right now, we need to discuss another domain type — broadcast domains.

Every single time a host connected to this hub sends a broadcast (a message meant for everyone), every other host on that hub will receive a copy of that broadcast.

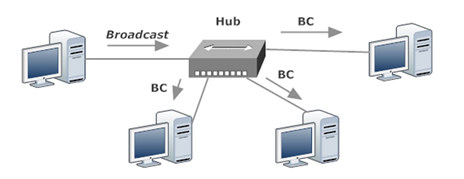

One Hub, One Broadcast Domain

Generally speaking, not every device that can receive that broadcast needs it, and we’re very interested in preventing the unnecessary forwarding (“propagation”) of a broadcast throughout the network.

Everything we do on a Cisco router or switch has a cost in one form or another, whether it be time, more work for the processor, or lessening our overall available bandwidth.   It’s in our best interest and in the best interest of our network to prevent our routers and switches from handling unnecessary tasks.

Let’s say we have 64 hosts attached to a hub.  If one host sends a broadcast, 63 hosts are going to get a copy of that broadcast.   If only three hosts actually need the broadcast, we’re running into these unnecessary costs:

  • The hub has to create and send 60 unnecessary copies of the broadcast.
  • Each host still has to “unpack” the incoming broadcast, whether or not they actually need the contents.
  • We’re sucking up bandwidth unnecessarily with those 60 unneeded broadcasts.

In short, hubs and repeaters brought some benefits to our network, but they left us with two major problems:

  • All connected hosts are in one collision domain, increasing the chance of collisions.
  • Those same hosts are in one broadcast domain, so when one host sends a broadcast, every other host connected to that hub is going to get a copy of it.

Then came the bridge.

The Bridge Enters Our Network

With bridges, we could now create smaller collision domains, which in turn resulted in fewer overall collisions. Bridges were generally placed between hubs to create these multiple collision domains.

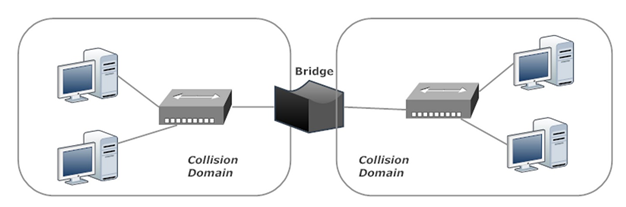

Bridges Break Up Collision Domains

At first, having more collision domains sounds like it would result in more collisions, but the net effect is quite the opposite.  In this network, we still have the potential for collisions, but the logical segmentation of the network via the bridge lessens the overall chance and number of said collisions.

Bridges were a big help on the collision front, but not so much with broadcasts.  This network is still one broadcast domain, and as the network grows larger, so does the number of total broadcasts.

Bridges Do Not Break Up Collision Domains

Then along came switches.

All Hail The Switch!

By replacing our hubs, repeaters, and bridges with a single switch, we gain immediate benefits, especially when each host is connected to its own switch port.  That means each host is in its own collision domain.  This “one host, one port” topology is microsegmentation, and this design eliminates any chance of collisions.

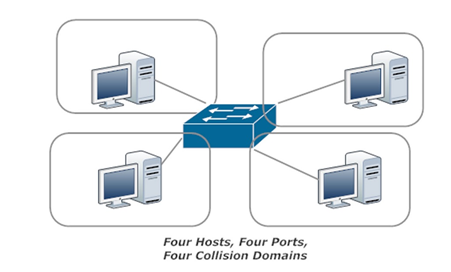

One Switch, Four Hosts, Four Collision Domains

Each host will also have far more bandwidth available to it than in the previous designs.  With microsegmentation, the hosts no longer have to share their bandwidth with other hosts.  With FastEthernet ports, theoretically, each host can run at 200 Mbps (100 sending, 100 receiving).

Switches do not break up broadcast domains by default, so we still have one broadcast domain.

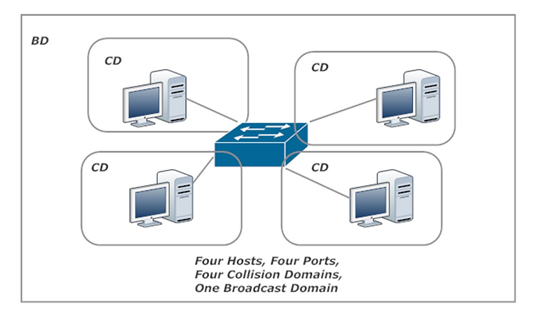

Switches and Collision Domains and Broadcast Domains

We’ll address how to configure a Cisco switch to break up broadcast domains in a future tutorial (hint: Virtual LANs).   Right now, let’s review the capabilities of hubs, bridges, and switches.

  • Hubs give us one collision domain consisting of all connected hosts, one broadcast domain containing those same hosts, and allow only one host to transmit at a time.
  • Bridges allow us to logically segment the network and to lessen the size of collision domains, lessening the chances of a collision. Bridges do nothing to segment broadcast domains.
  • Switches bring us one-host collision domains (“microsegmentation”) and the capability to logically segment the broadcast domain.

Be sure you’re very clear on the differences between hubs, switches, repeaters, and bridges before you take your CCENT, CCNA, or Network+ exams.

Something else you need to have down cold is the way a switch builds its MAC address table, and  that’s the next lesson in this free Switching Fundamentals course.
