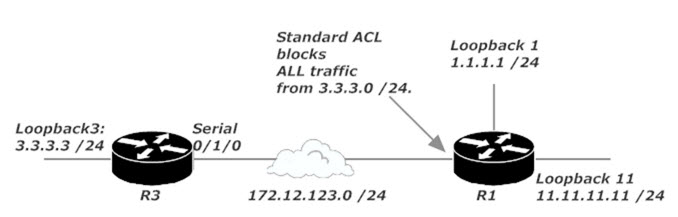

In our standard ACL tutorial and lab, it became apparent that standard ACLs have one huge drawback — they only match on the source IP address of packets, which can make them unsuitable for a WAN such as the one illustrated here.  If we try to block traffic from /24 that is destined for /24 on R1, a standard ACL would have the effect of blocking all traffic from /24.

Standard ACL Is Unacceptable

For this and many other real-world situations, we’ll need an extended ACL.  Extended ACLs consider both the source and destination IP address of a packet.   Even if you don’t care about the source and just want to match on destination, you’ll have to put any in for the source.

I’ve bolded the extended ACL ranges for you here. Know these just as well as you know the standard ACL ranges.

R1(config)#access-list ?

  <1-99>            IP standard access list

  <100-199>         IP extended access list

  <1000-1099>       IPX SAP access list

  <1100-1199>       Extended 48-bit MAC address access list

  <1200-1299>       IPX summary address access list

  <1300-1999>       IP standard access list (expanded range)

  <200-299>         Protocol type-code access list

  <2000-2699>       IP extended access list (expanded range)

  <300-399>         DECnet access list

  <600-699>         Appletalk access list

  <700-799>         48-bit MAC address access list

  <800-899>         IPX standard access list

  <900-999>         IPX extended access list

  dynamic-extended  Extend the dynamic ACL absolute timer

  rate-limit        Simple rate-limit specific access list

Let’s write an extended ACL that will meet the requirements previously stated.

R1(config)#access-list 111 ?

  deny     Specify packets to reject

  dynamic  Specify a DYNAMIC list of PERMITs or DENYs

  permit   Specify packets to forward

  remark   Access list entry comment

As a fortune cookie once told me, when it comes to denial, we have many choices.  That’s especially true of extended ACLs, as IOS Help is about to tell us.

R1(config)#access-list 111 deny ?

  <0-255>       An IP protocol number

  ahp           Authentication Header Protocol

  eigrp         Cisco's EIGRP routing protocol

  esp           Encapsulation Security Payload

  gre           Cisco's GRE tunneling

  icmp          Internet Control Message Protocol

  igmp          Internet Gateway Message Protocol

  ip            Any Internet Protocol

  ipinip        IP in IP tunneling

  nos           KA9Q NOS compatible IP over IP tunneling

  object-group  Service object group

  ospf          OSPF routing protocol

  pcp           Payload Compression Protocol

  pim           Protocol Independent Multicast

  tcp           Transmission Control Protocol

  udp           User Datagram Protocol

We’re blocking IP traffic, so we’ll go with ip.   Next up – the source address and mask.

R1(config)#access-list 111 deny ip ?

  A.B.C.D       Source address

  any           Any source host

  host          A single source host

  object-group  Source network object group

R1(config)#access-list 111 deny ip ?

  A.B.C.D  Source wildcard bits

R1(config)#access-list 111 deny ip

Now for the destination information.

R1(config)#access-list 111 deny ip ?

  A.B.C.D       Destination address

  any           Any destination host

  host          A single destination host

  object-group  Destination network object group

R1(config)#access-list 111 deny ip ?

  A.B.C.D  Destination wildcard bits

R1(config)#access-list 111 deny ip

Let’s have a look at the remaining options.

R1(config)#access-list 111 deny ip ?

  dscp        Match packets with given dscp value

  fragments   Check non-initial fragments

  log         Log matches against this entry

  log-input   Log matches against this entry, including input interface

  option      Match packets with given IP Options value

  precedence  Match packets with given precedence value

  time-range  Specify a time-range

  tos         Match packets with given TOS value


We’ll put some of those options to use later, but for now, we’re good.  This is the first time we’ve seen <cr> in this lab,  because extended ACLs require you to enter information for both the source and destination IP addresses  Our one and only ACL line to date:

R1(config)#access-list 111 deny ip

By the way, what is the net effect of this ACL?

R1#show ip access-list

Extended IP access list 111

    10 deny ip

The first line denies the traffic we wanted to deny. The implicit deny denies everything else.  If traffic is not expressly permitted, it’s implicitly denied.    Right now, ACL 111 denies everything!    Note that show ip access-list does not remind you of the implicit deny.

To negate the implicit deny in an extended ACL, add a permit any any line.  (“any” is needed twice here – once for the source, once for the destination.)

R1(config)#access-list 111 permit ip any any

Verify with show ip access-list and we’re good.   (More on that “10” and “20” very soon.  One thing at a time!)

R1#show ip access-list

Extended IP access list 111

10 deny ip

20 permit ip any any

Regardless of type, ACLs are applied to Cisco router interfaces with the ip access-group command.

R1(config)#int serial 0/1/0

R1(config-if)#ip access-group ?

  <1-199>      IP access list (standard or extended)

  <1300-2699>  IP expanded access list (standard or extended)

  WORD         Access-list name

R1(config-if)#ip access-group 111 ?

  in   inbound packets

  out  outbound packets

You must specify whether inbound or outbound packets should be checked by this particular ACL.  The command is incomplete until you do so.  Verify with show ip access-list, show access-list, and / or show ip interface (a handy and often overlooked command) and you’re all set to test.   We haven’t seen show ip interface in action yet, so let’s do so now.

R1#show ip interface serial 0/1/0

Serial0/1/0 is up, line protocol is up

  Internet address is

  Broadcast address is

  Address determined by setup command

  MTU is 1500 bytes

  Helper address is not set

  Directed broadcast forwarding is disabled

  Outgoing access list is not set

  Inbound  access list is 101

  (output truncated for clarity)

We have our ACL in place, and I trust that it’s fine, but there’s something we really need to do….
